PP needle-punched cotton water filter element, water supply device for hard water and impure water, filter bottle filter element

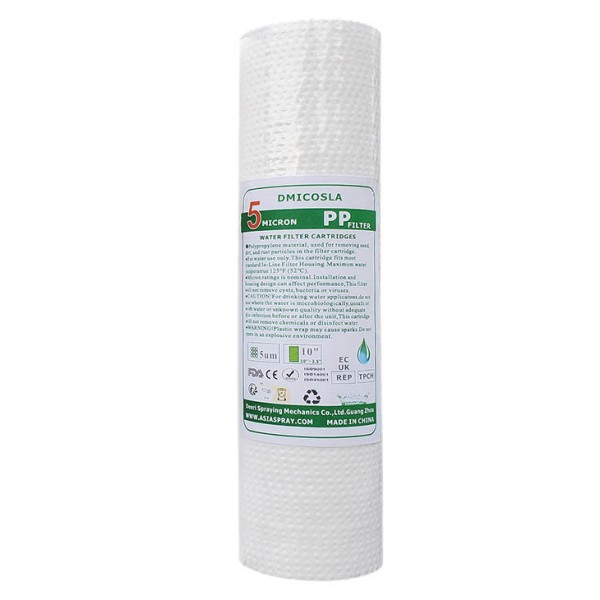

Flat mouth high quality PP needle punched cotton water filter element

The product adopts acupuncture and pressing technology, and the pore size is dense and uniform, which is conducive to liquid diversion and improves filtration efficiency.

10 inch product parameters
Weight: 130g Material: Food grade PP (polypropylene).
Accuracy: 1/5 um (optional) Inner diameter: 30mm
Length: 254mm Outer diameter: 60mm±2mm
Replacement: 3~6 months is recommended Application: 10-inch filter bottle, etc
Clean water flow: ≤60L/Min/3Bar/1um,≤100L/Min/3Bar/5um
Working temperature: PP-≤50℃；CT-≤180℃；GF-≤200℃。

20-inch product parameters
Weight: 260g Material: Food grade PP (polypropylene).
Accuracy: 1/5 um (optional) Inner diameter: 30mm
Length: 508mm Outer diameter: 60mm±2mm
Replacement: recommended for 3~6 months Application: 20-inch filter bottle, etc
Clean water flow: ≤120L/Min/3Bar/1um,≤200L/Min/3Bar/5um
Working temperature: PP-≤50℃；CT-≤180℃；GF-≤200℃。

Product Role
The filter element belongs to the sediment depth filter material, which can filter out impurities such as sediment, dirt, rust, bloodworms, colloids, hair, fibers, suspended solids and other impurities that are easily visible to the naked eye, and are used to replace the filter element of the filter bottle.
Food-grade material, suitable for PCB, electroplating, pure water, food and drinking water, RO penetration pre-filtration treatment, etc.
Note: 1. The replacement cycle of the service life depends on the water quality and net water quantity in various places.
2. 1um is 1 micron.
3. It is suitable for most standard filters, but the installation and housing design of the filter will affect the performance.

The difference between microns and weight
The water output of 5um is faster than that of 1um, and it can filter impurities ≥ 5um in the water, and the primary filtration of raw water is usually placed in the first stage of the water purifier.
1um filtration is more fine, filtering impurities ≥ 1um in the water, and the primary filtration of raw water is usually placed in the first or third stage.
The heavier the gram weight, the more materials used, the stronger the impurity interception and filtration performance, the longer the service life, and the stronger the hardness.

For the installation of filter bottles
3 steps: Use a universal or special wrench to unscrew the cap, replace the filter element, and then tighten the cap with a wrench.

Special precautions
This filter cartridge only serves as a water purification to remove impurities, and cannot remove microorganisms (cysts, bacteria, viruses, etc.), chemicals, and disinfectant water, so please do not use it in places where water pollution is unknown.
